Analysis of types and applications of silicon controlled rectifiers (SCRs): unidirectional, bidirectional, turn-off and light-controlled types

May 22,2025
in CHEMICALS & MATERIALS
0
Analysis of types and applications of silicon controlled rectifiers (SCRs): unidirectional, bidirectional, turn-off and light-controlled types
0
SHARES
0
VIEWS
Share on FacebookShare on Twitter

Intro: Key tools in power electronic devices

Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power gadgets with a four-layer triple junction framework (PNPN). Because its intro in the 1950s, SCRs have actually been widely used in industrial automation, power systems, home device control and various other areas because of their high stand up to voltage, large current lugging capacity, quick response and easy control. With the growth of technology, SCRs have advanced into lots of kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences in between these kinds are not only reflected in the framework and working principle, however also identify their applicability in various application circumstances. This write-up will begin with a technical point of view, combined with certain parameters, to deeply evaluate the major distinctions and typical uses of these 4 SCRs.

Unidirectional SCR: Fundamental and steady application core

Unidirectional SCR is one of the most standard and typical type of thyristor. Its structure is a four-layer three-junction PNPN plan, including 3 electrodes: anode (A), cathode (K) and entrance (G). It just allows present to stream in one direction (from anode to cathode) and activates after the gate is triggered. When turned on, even if eviction signal is removed, as long as the anode current is above the holding existing (usually less than 100mA), the SCR stays on.

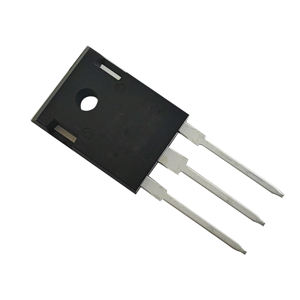

(Thyristor Rectifier)

Unidirectional SCR has solid voltage and present tolerance, with a forward repeated peak voltage (V DRM) of as much as 6500V and a ranked on-state ordinary present (ITAV) of as much as 5000A. Therefore, it is widely utilized in DC motor control, commercial heating unit, uninterruptible power supply (UPS) rectification parts, power conditioning gadgets and other celebrations that need continuous transmission and high power processing. Its benefits are easy structure, inexpensive and high reliability, and it is a core component of lots of typical power control systems.

Bidirectional SCR (TRIAC): Perfect for AC control

Unlike unidirectional SCR, bidirectional SCR, additionally referred to as TRIAC, can attain bidirectional conduction in both positive and adverse half cycles. This framework consists of 2 anti-parallel SCRs, which permit TRIAC to be triggered and activated at any moment in the a/c cycle without changing the circuit link technique. The in proportion conduction voltage range of TRIAC is generally ± 400 ~ 800V, the optimum load current is about 100A, and the trigger current is much less than 50mA.

Due to the bidirectional conduction characteristics of TRIAC, it is particularly ideal for air conditioning dimming and rate control in family devices and customer electronics. As an example, gadgets such as light dimmers, follower controllers, and a/c follower rate regulators all count on TRIAC to attain smooth power guideline. Additionally, TRIAC additionally has a reduced driving power need and is suitable for incorporated style, so it has actually been commonly used in smart home systems and tiny appliances. Although the power thickness and changing rate of TRIAC are not comparable to those of brand-new power tools, its affordable and hassle-free use make it a vital player in the field of small and medium power air conditioner control.

Entrance Turn-Off Thyristor (GTO): A high-performance agent of energetic control

Entrance Turn-Off Thyristor (GTO) is a high-performance power device created on the basis of standard SCR. Unlike normal SCR, which can just be switched off passively, GTO can be turned off proactively by applying a negative pulse current to the gate, hence achieving more adaptable control. This feature makes GTO execute well in systems that call for constant start-stop or rapid action.

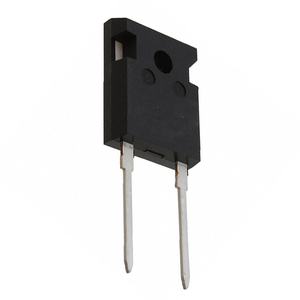

(Thyristor Rectifier)

The technological criteria of GTO reveal that it has extremely high power dealing with capacity: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can get to 6000V, and the maximum operating current is up to 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These performance signs make GTO commonly used in high-power circumstances such as electric engine traction systems, huge inverters, industrial motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high changing losses, its performance under high power and high dynamic response demands is still irreplaceable.

Light-controlled thyristor (LTT): A reputable selection in the high-voltage seclusion environment

Light-controlled thyristor (LTT) uses optical signals rather than electric signals to set off transmission, which is its largest feature that differentiates it from various other kinds of SCRs. The optical trigger wavelength of LTT is typically in between 850nm and 950nm, the reaction time is determined in split seconds, and the insulation level can be as high as 100kV or over. This optoelectronic seclusion mechanism considerably improves the system’s anti-electromagnetic disturbance capacity and safety and security.

LTT is mainly utilized in ultra-high voltage direct present transmission (UHVDC), power system relay defense gadgets, electro-magnetic compatibility protection in clinical devices, and military radar interaction systems etc, which have very high requirements for security and security. For instance, several converter terminals in China’s “West-to-East Power Transmission” project have adopted LTT-based converter shutoff modules to guarantee secure procedure under exceptionally high voltage conditions. Some advanced LTTs can also be combined with entrance control to attain bidirectional conduction or turn-off functions, even more increasing their application range and making them an ideal choice for solving high-voltage and high-current control issues.

Supplier

Luoyang Datang Energy Tech Co.Ltd focuses on the research, development, and application of power electronics technology and is devoted to supplying customers with high-quality transformers, thyristors, and other power products. Our company mainly has solar inverters, transformers, voltage regulators, distribution cabinets, thyristors, module, diodes, heatsinks, and other electronic devices or semiconductors. If you want to know more about , please feel free to contact us.(sales@pddn.com)

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.
