1. Product Basics and Architectural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

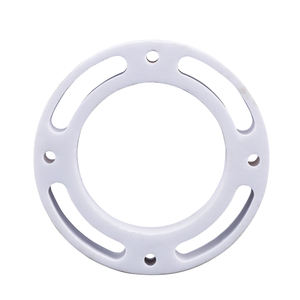

(Alumina Ceramic Substrates)
Alumina ceramic substratums, mainly composed of aluminum oxide (Al two O FOUR), act as the foundation of modern digital packaging as a result of their outstanding equilibrium of electric insulation, thermal security, mechanical strength, and manufacturability.
One of the most thermodynamically steady stage of alumina at heats is corundum, or α-Al ₂ O FIVE, which takes shape in a hexagonal close-packed oxygen lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites.
This dense atomic arrangement imparts high solidity (Mohs 9), exceptional wear resistance, and solid chemical inertness, making α-alumina ideal for severe operating settings.
Industrial substrates normally have 90– 99.8% Al ₂ O ₃, with small enhancements of silica (SiO ₂), magnesia (MgO), or unusual planet oxides used as sintering help to advertise densification and control grain growth throughout high-temperature handling.
Higher pureness qualities (e.g., 99.5% and above) show superior electrical resistivity and thermal conductivity, while lower purity variations (90– 96%) supply cost-effective solutions for much less demanding applications.
1.2 Microstructure and Defect Design for Electronic Dependability
The performance of alumina substratums in digital systems is seriously depending on microstructural uniformity and problem minimization.
A penalty, equiaxed grain framework– normally varying from 1 to 10 micrometers– ensures mechanical stability and reduces the probability of split breeding under thermal or mechanical tension.
Porosity, particularly interconnected or surface-connected pores, should be minimized as it weakens both mechanical stamina and dielectric performance.
Advanced handling strategies such as tape casting, isostatic pushing, and controlled sintering in air or regulated environments make it possible for the production of substratums with near-theoretical thickness (> 99.5%) and surface roughness below 0.5 µm, crucial for thin-film metallization and wire bonding.
Furthermore, pollutant partition at grain limits can bring about leakage currents or electrochemical movement under predisposition, necessitating stringent control over raw material pureness and sintering conditions to guarantee long-term dependability in damp or high-voltage environments.
2. Production Processes and Substratum Manufacture Technologies

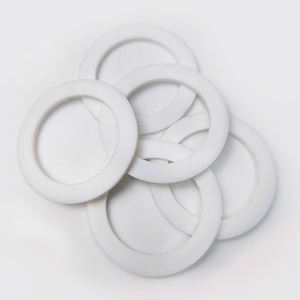

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Eco-friendly Body Processing
The manufacturing of alumina ceramic substratums begins with the preparation of an extremely dispersed slurry consisting of submicron Al two O six powder, natural binders, plasticizers, dispersants, and solvents.
This slurry is processed through tape casting– a constant technique where the suspension is spread over a moving provider movie using an accuracy medical professional blade to achieve uniform density, usually between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “environment-friendly tape” is flexible and can be punched, drilled, or laser-cut to form by means of openings for upright interconnections.
Several layers might be laminated to produce multilayer substratums for intricate circuit combination, although the majority of commercial applications use single-layer setups as a result of set you back and thermal development considerations.
The eco-friendly tapes are then very carefully debound to remove organic additives with regulated thermal disintegration before final sintering.
2.2 Sintering and Metallization for Circuit Combination
Sintering is carried out in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to attain complete densification.
The linear shrinking throughout sintering– typically 15– 20%– must be specifically predicted and compensated for in the layout of eco-friendly tapes to make certain dimensional accuracy of the last substratum.
Complying with sintering, metallization is related to develop conductive traces, pads, and vias.
Two primary methods dominate: thick-film printing and thin-film deposition.
In thick-film modern technology, pastes containing metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a lowering atmosphere to form robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or evaporation are utilized to deposit bond layers (e.g., titanium or chromium) adhered to by copper or gold, allowing sub-micron pattern via photolithography.
Vias are filled with conductive pastes and discharged to establish electric interconnections in between layers in multilayer styles.
3. Useful Properties and Performance Metrics in Electronic Systems
3.1 Thermal and Electrical Behavior Under Operational Tension
Alumina substrates are prized for their positive combination of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al ₂ O FIVE), which allows reliable warm dissipation from power tools, and high volume resistivity (> 10 ¹⁴ Ω · cm), guaranteeing marginal leak current.
Their dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is steady over a vast temperature and frequency range, making them suitable for high-frequency circuits up to a number of gigahertz, although lower-κ products like aluminum nitride are chosen for mm-wave applications.
The coefficient of thermal growth (CTE) of alumina (~ 6.8– 7.2 ppm/K) is reasonably well-matched to that of silicon (~ 3 ppm/K) and particular packaging alloys, reducing thermo-mechanical anxiety during tool procedure and thermal cycling.
Nonetheless, the CTE inequality with silicon stays a problem in flip-chip and straight die-attach arrangements, often needing certified interposers or underfill materials to minimize tiredness failing.
3.2 Mechanical Robustness and Environmental Durability
Mechanically, alumina substrates exhibit high flexural stamina (300– 400 MPa) and superb dimensional stability under tons, allowing their use in ruggedized electronics for aerospace, automotive, and commercial control systems.
They are immune to resonance, shock, and creep at elevated temperature levels, preserving architectural integrity approximately 1500 ° C in inert environments.
In damp atmospheres, high-purity alumina shows minimal wetness absorption and excellent resistance to ion movement, guaranteeing long-term integrity in exterior and high-humidity applications.
Surface firmness additionally shields versus mechanical damages during handling and assembly, although care should be taken to stay clear of side breaking due to inherent brittleness.
4. Industrial Applications and Technical Effect Across Sectors
4.1 Power Electronics, RF Modules, and Automotive Solutions
Alumina ceramic substratums are common in power electronic components, including insulated gateway bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they give electrical seclusion while assisting in warmth transfer to warm sinks.
In superhigh frequency (RF) and microwave circuits, they work as carrier platforms for hybrid incorporated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks because of their stable dielectric homes and reduced loss tangent.
In the automotive market, alumina substrates are made use of in engine control devices (ECUs), sensing unit bundles, and electric vehicle (EV) power converters, where they sustain heats, thermal biking, and exposure to destructive fluids.
Their reliability under rough problems makes them important for safety-critical systems such as anti-lock stopping (ABS) and advanced vehicle driver help systems (ADAS).
4.2 Clinical Instruments, Aerospace, and Arising Micro-Electro-Mechanical Systems
Past consumer and industrial electronics, alumina substratums are employed in implantable medical tools such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are paramount.
In aerospace and defense, they are utilized in avionics, radar systems, and satellite communication components because of their radiation resistance and security in vacuum cleaner settings.
Furthermore, alumina is significantly used as an architectural and shielding system in micro-electro-mechanical systems (MEMS), consisting of stress sensors, accelerometers, and microfluidic tools, where its chemical inertness and compatibility with thin-film handling are advantageous.
As electronic systems continue to require greater power densities, miniaturization, and dependability under severe conditions, alumina ceramic substratums remain a cornerstone product, bridging the space between performance, price, and manufacturability in sophisticated electronic product packaging.
