1. Product Science and Structural Quality
1.1 Crystal Framework and Chemical Stability

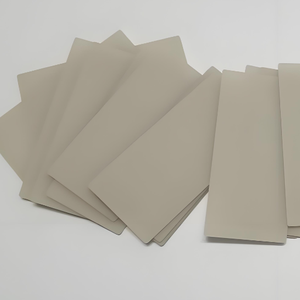

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a vast bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of rotating layers of light weight aluminum and nitrogen atoms bonded through strong covalent interactions.
This durable atomic plan enhances AlN with remarkable thermal stability, preserving architectural integrity approximately 2200 ° C in inert ambiences and resisting disintegration under extreme thermal biking.
Unlike alumina (Al ₂ O TWO), AlN is chemically inert to molten metals and many reactive gases, making it ideal for severe environments such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– developing only a thin protective Al two O ₃ layer at surface area upon exposure to air– makes sure long-term integrity without significant degradation of mass residential or commercial properties.
Additionally, AlN displays excellent electrical insulation with a resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric stamina above 30 kV/mm, crucial for high-voltage applications.
1.2 Thermal Conductivity and Digital Characteristics
One of the most specifying attribute of light weight aluminum nitride is its superior thermal conductivity, usually varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times greater than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and aluminum, integrated with solid bonding and very little point problems, which allow reliable phonon transportation via the latticework.
Nonetheless, oxygen pollutants are specifically detrimental; even trace amounts (above 100 ppm) alternative to nitrogen websites, creating light weight aluminum vacancies and spreading phonons, thereby considerably decreasing thermal conductivity.
High-purity AlN powders manufactured via carbothermal reduction or straight nitridation are vital to achieve ideal warm dissipation.
In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric homes make it useful in sensors and acoustic wave devices, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Construction Processes and Production Difficulties

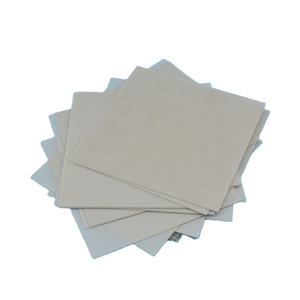

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, commonly accomplished via responses such as Al ₂ O FIVE + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be thoroughly grated and doped with sintering help like Y TWO O FOUR, CaO, or uncommon earth oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen ambience.
These ingredients form transient fluid phases that improve grain boundary diffusion, making it possible for complete densification (> 99% academic thickness) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can additionally minimize oxygen web content by eliminating intergranular oxides, therefore restoring peak thermal conductivity.
Accomplishing uniform microstructure with controlled grain size is crucial to balance mechanical toughness, thermal performance, and manufacturability.
2.2 Substrate Shaping and Metallization
Once sintered, AlN ceramics are precision-ground and splashed to fulfill tight dimensional resistances required for electronic packaging, usually to micrometer-level flatness.
Through-hole boring, laser cutting, and surface pattern make it possible for combination into multilayer packages and crossbreed circuits.
A vital step in substrate fabrication is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bonded to AlN surface areas at raised temperature levels in a controlled atmosphere, forming a strong interface ideal for high-current applications.
Different strategies like active metal brazing (AMB) make use of titanium-containing solders to boost adhesion and thermal exhaustion resistance, particularly under duplicated power cycling.
Proper interfacial engineering makes certain reduced thermal resistance and high mechanical dependability in running tools.
3. Performance Advantages in Electronic Systems
3.1 Thermal Administration in Power Electronics
AlN substratums excel in taking care of warmth generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electric cars, renewable energy inverters, and telecommunications framework.
Effective warmth removal protects against localized hotspots, decreases thermal tension, and extends tool lifetime by alleviating electromigration and delamination risks.
Compared to standard Al two O five substratums, AlN makes it possible for smaller plan sizes and greater power densities because of its superior thermal conductivity, permitting developers to press performance boundaries without compromising integrity.
In LED lighting and laser diodes, where junction temperature level directly affects performance and shade stability, AlN substrates considerably improve luminous outcome and functional life-span.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) additionally very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), minimizing thermo-mechanical stress during thermal biking.
3.2 Electrical and Mechanical Dependability
Past thermal performance, AlN offers reduced dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) across a wide regularity variety, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents moisture ingress, eliminating rust risks in damp environments– a vital advantage over natural substratums.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and solidity (HV ≈ 1200), making sure longevity during handling, assembly, and field operation.
These features jointly add to boosted system dependability, reduced failure prices, and reduced overall expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Solutions
AlN ceramic substrates are now standard in advanced power modules for commercial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid cars.
In aerospace and defense, they support radar systems, electronic war units, and satellite communications, where performance under severe conditions is non-negotiable.
Medical imaging equipment, including X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal stability.
As electrification fads speed up across transport and energy markets, need for AlN substratums remains to expand, driven by the demand for compact, reliable, and reliable power electronic devices.
4.2 Arising Integration and Lasting Growth
Future developments concentrate on incorporating AlN into three-dimensional packaging designs, embedded passive components, and heterogeneous assimilation systems combining Si, SiC, and GaN tools.
Research right into nanostructured AlN movies and single-crystal substrates intends to additional increase thermal conductivity toward theoretical limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Initiatives to minimize production prices via scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are acquiring momentum to enhance sustainability.
Furthermore, modeling devices utilizing finite component evaluation (FEA) and machine learning are being employed to maximize substrate style for specific thermal and electric lots.
In conclusion, aluminum nitride ceramic substratums represent a keystone technology in modern electronics, distinctly linking the gap in between electric insulation and remarkable thermal conduction.
Their function in enabling high-efficiency, high-reliability power systems underscores their calculated significance in the ongoing advancement of electronic and power innovations.
