Check out the comprehensive guide to oil immersed transformers, consisting of oil immersed power transformers and oil submersed distribution transformers. Discover their functioning concepts, kinds, benefits, and progressing role in smart grids and renewable energy.
1. Intro to Oil Immersed Transformers
In the detailed web of our modern-day electrical grid, transformers play a vital duty, silently stepping voltage up and down to make certain power can be sent efficiently over fars away and dispersed securely to our homes and industries. Among the numerous kinds available, the oil submersed transformer stands as a testimony to tried and tested reliability and resilience. For decades, these workhorses have actually created the backbone of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that utilizes a specific shielding oil as both a coolant and a protecting tool. This layout is mostly used for tool to high-power applications, making it a keystone of electrical infrastructure. This guide delves deep into the world of oil immersed power transformers and oil immersed distribution transformers, discovering their innovation, applications, and their developing function in an era of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank filled with protecting oil. The key function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, properly protecting the high-voltage windings from the transformer’s core and grounded storage tank. This avoids brief circuits and electrical breakdowns.
2. Air conditioning: As the transformer runs, the windings generate significant warm because of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s tank walls, and dissipates it right into the surrounding air. Bigger units usually include radiators or fins to enhance the surface for extra effective cooling.
This dual-purpose use of oil makes the oil submersed transformer extremely reliable and robust, with the ability of taking care of high lots and enduring short-term overloads better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil submersed transformers, they serve unique features within the power system network. Understanding the difference is essential.
An oil submersed power transformer is a heavyweight, normally made use of in transmission networks at generating stations and significant substations. Their primary role is to “step-up” the voltage generated at the power plant to extremely high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for more distribution. They are identified by their extremely high power rankings (usually going beyond 100 MVA), intricate building and construction, and on-load tap changers for voltage regulation.
An oil engaged distribution transformer, on the various other hand, carries out the last action in the power shipment chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the reduced voltages (e.g., 400/230 V) utilized by industrial and property customers. You commonly locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power rankings (generally as much as 2,500 kVA), and are made for maximum performance at lower, much more constant loads.

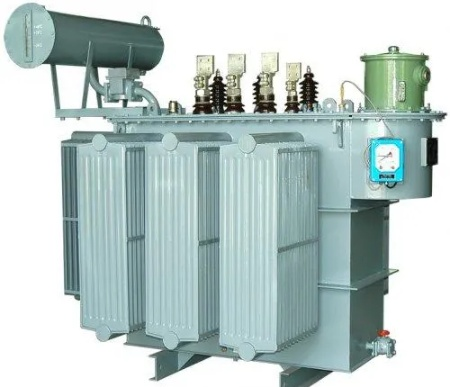

(Oil immersed power transformer)
2. Secret Advantages of Oil Submersed Transformers
The long-lasting appeal of the oil immersed transformer is not unexpected. It uses a suite of compelling benefits that make it the preferred selection for many requiring applications.
2.1 Superior Air Conditioning and Overload Capability
The premium thermal capacity of oil compared to air enables an oil immersed power transformer to manage and dissipate heat a lot more effectively. This equates to a greater overload capacity. Throughout periods of peak power demand, an oil immersed transformer can handle short-term overloads without enduring damage, a vital function for maintaining grid stability. The oil’s flow guarantees also heat circulation, avoiding local locations that can degrade insulation in time.
2.2 Enhanced Insulation and Long Life Span
The mix of premium mineral oil and carefully impregnated paper insulation produces a dielectric system of phenomenal stamina. This durable insulation system safeguards the transformer from voltage rises and transients, contributing to an operational life-span that can encompass 30-40 years or even more with appropriate maintenance. The sealed container likewise secures the internal parts from moisture, dust, and various other atmospheric impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is often one of the most economical selection. The materials utilized– mineral oil, steel container, and copper/aluminum windings– use a favorable equilibrium of performance and price. The high effectiveness of these transformers, specifically at their rated tons, leads to lower energy losses over their lifetime, leading to significant cost financial savings for energy business and huge industrial customers.
3. Warm Topics and Future Trends
The world of oil submersed transformers is not fixed. It is continuously developing to fulfill new obstacles and integrate with contemporary technologies.
3.1 Eco-friendly and Fireproof Oils
Environmental and security concerns are driving a considerable change far from conventional mineral oil. The market is swiftly adopting oil immersed transformers loaded with eco-friendly esters (synthetic or natural). These oils offer a greater fire point (making them K-class fire-resistant), are much less poisonous, and are easily biodegradable, dramatically reducing the environmental effect in instance of a leak. This fad is making oil submersed distribution transformers safer for installment in city locations and eco sensitive locations.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil involved power transformer is becoming a smart node in the smart grid. Sensors are being integrated to monitor essential criteria in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting mistake gases created within the oil to anticipate incipient faults.
Temperature Level Monitoring: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Surveillance.
This data, sent via IoT (Web of Things) systems, allows predictive maintenance, prevents unplanned failures, and optimizes transformer use and life-span.
3.3 Supporting the Renewable Resource Change
The international promote renewables is producing brand-new need for oil submersed transformers. Large solar farms and wind power setups need durable oil submersed power transformers to step up the produced voltage to transmission degrees. Additionally, the recurring nature of renewables areas better stress on grid components, and the proven reliability and overload capability of oil submersed transformers make them excellent for this vital role.
4. Option and Maintenance Finest Practices
Choosing the appropriate transformer and preserving it appropriately is vital to a trustworthy power system.
4.1 Exactly how to Choose the Right Oil Immersed Transformer
Picking between an oil immersed power transformer and an oil immersed circulation transformer depends on the application. Key factors to consider consist of:
1. Voltage Degree and kVA Score: Match the transformer’s specs to your system’s needs.
2. Application: Transmission substation, industrial plant, or industrial distribution.
3. Place: Indoor vs. outside, ecological problems, and fire safety regulations (which may influence the option of insulating oil).
4. Effectiveness Standards: Adhere to local efficiency requirements like DOE (USA) or EU CoC (Europe).
5. Spending plan: Consider both the initial capital cost and the complete cost of ownership, including losses.
(Oil immersed distribution transformer)
4.2 Vital Upkeep for Durability
Positive upkeep is vital for any kind of oil submersed transformer. A detailed program ought to consist of:
1. Normal Oil Tasting and Testing: Periodic DGA and screening of dielectric toughness and dampness material are one of the most effective ways to evaluate the wellness of the transformer.
2. Bushing and Insulation Evaluation: Visual checks for splits, contamination, or leakages.
3. Faucet Changer Upkeep: Normal evaluation and servicing of on-load or off-load tap changers.
4. Keep it Clean and Dry: Making certain the tank outside, radiators, and breathers are tidy and practical.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed circulation transformer, stays an irreplaceable component of our global energy framework. Its proven layout, paired with recurring innovations in insulating liquids and digital monitoring, ensures it will certainly remain to be a reputable, reliable, and smart remedy for powering our world for decades to come. As we construct the grids of the future, incorporating more renewables and digital knowledge, the durable and versatile oil immersed transformer will most certainly be at the heart of it.
