1. Material Principles and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

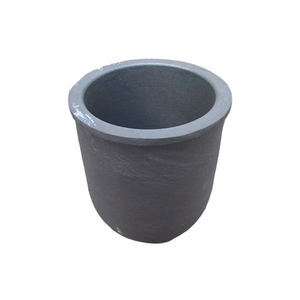

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms arranged in a tetrahedral lattice, creating one of the most thermally and chemically durable materials known.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, confer extraordinary firmness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is favored as a result of its capability to preserve architectural integrity under severe thermal gradients and corrosive liquified environments.
Unlike oxide ceramics, SiC does not go through turbulent phase transitions approximately its sublimation point (~ 2700 ° C), making it ideal for sustained operation above 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A defining attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises consistent warmth circulation and minimizes thermal anxiety throughout fast home heating or air conditioning.
This home contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to fracturing under thermal shock.
SiC likewise displays superb mechanical toughness at elevated temperatures, keeping over 80% of its room-temperature flexural stamina (up to 400 MPa) even at 1400 ° C.
Its low coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) additionally enhances resistance to thermal shock, a vital factor in repeated biking between ambient and functional temperatures.
Furthermore, SiC demonstrates exceptional wear and abrasion resistance, ensuring lengthy service life in environments including mechanical handling or unstable thaw circulation.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Techniques and Densification Strategies
Business SiC crucibles are mostly fabricated via pressureless sintering, response bonding, or hot pushing, each offering distinctive benefits in expense, purity, and efficiency.
Pressureless sintering involves compacting great SiC powder with sintering help such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to attain near-theoretical thickness.
This approach yields high-purity, high-strength crucibles ideal for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is produced by penetrating a permeable carbon preform with liquified silicon, which responds to develop β-SiC sitting, resulting in a compound of SiC and recurring silicon.
While a little lower in thermal conductivity as a result of metallic silicon additions, RBSC supplies exceptional dimensional security and reduced production expense, making it popular for large commercial use.
Hot-pressed SiC, though more expensive, offers the highest thickness and pureness, scheduled for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area Top Quality and Geometric Accuracy
Post-sintering machining, consisting of grinding and splashing, makes certain exact dimensional tolerances and smooth inner surfaces that minimize nucleation websites and reduce contamination danger.
Surface area roughness is very carefully managed to prevent melt attachment and facilitate very easy launch of strengthened products.
Crucible geometry– such as wall thickness, taper angle, and lower curvature– is optimized to balance thermal mass, structural stamina, and compatibility with heater burner.
Customized designs suit certain thaw quantities, home heating accounts, and product sensitivity, ensuring optimum efficiency across diverse commercial procedures.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and lack of flaws like pores or cracks.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Settings
SiC crucibles exhibit outstanding resistance to chemical attack by molten steels, slags, and non-oxidizing salts, outshining traditional graphite and oxide porcelains.
They are stable in contact with liquified light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution due to reduced interfacial energy and development of safety surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that could break down electronic properties.
Nonetheless, under very oxidizing problems or in the presence of alkaline fluxes, SiC can oxidize to create silica (SiO ₂), which may respond even more to form low-melting-point silicates.
As a result, SiC is best matched for neutral or lowering ambiences, where its security is made best use of.
3.2 Limitations and Compatibility Considerations
Despite its effectiveness, SiC is not globally inert; it responds with specific liquified products, particularly iron-group metals (Fe, Ni, Carbon monoxide) at high temperatures via carburization and dissolution procedures.
In liquified steel processing, SiC crucibles degrade rapidly and are consequently avoided.
Likewise, antacids and alkaline planet metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and developing silicides, limiting their usage in battery product synthesis or reactive steel casting.
For molten glass and ceramics, SiC is typically suitable yet may introduce trace silicon into very delicate optical or digital glasses.
Comprehending these material-specific communications is essential for choosing the proper crucible type and guaranteeing procedure pureness and crucible longevity.
4. Industrial Applications and Technical Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are indispensable in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against prolonged exposure to molten silicon at ~ 1420 ° C.
Their thermal stability ensures consistent crystallization and lessens misplacement density, directly affecting solar performance.
In foundries, SiC crucibles are used for melting non-ferrous steels such as aluminum and brass, offering longer life span and minimized dross formation compared to clay-graphite options.
They are additionally used in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated ceramics and intermetallic compounds.
4.2 Future Fads and Advanced Material Integration
Emerging applications consist of making use of SiC crucibles in next-generation nuclear products testing and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FIVE) are being related to SiC surfaces to additionally enhance chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive production of SiC elements making use of binder jetting or stereolithography is under development, encouraging complex geometries and rapid prototyping for specialized crucible styles.
As demand expands for energy-efficient, durable, and contamination-free high-temperature handling, silicon carbide crucibles will certainly continue to be a foundation innovation in sophisticated products manufacturing.
Finally, silicon carbide crucibles represent a vital allowing element in high-temperature commercial and clinical processes.
Their unmatched combination of thermal stability, mechanical strength, and chemical resistance makes them the material of option for applications where performance and reliability are vital.
